VectorLabels
The VectorLabels

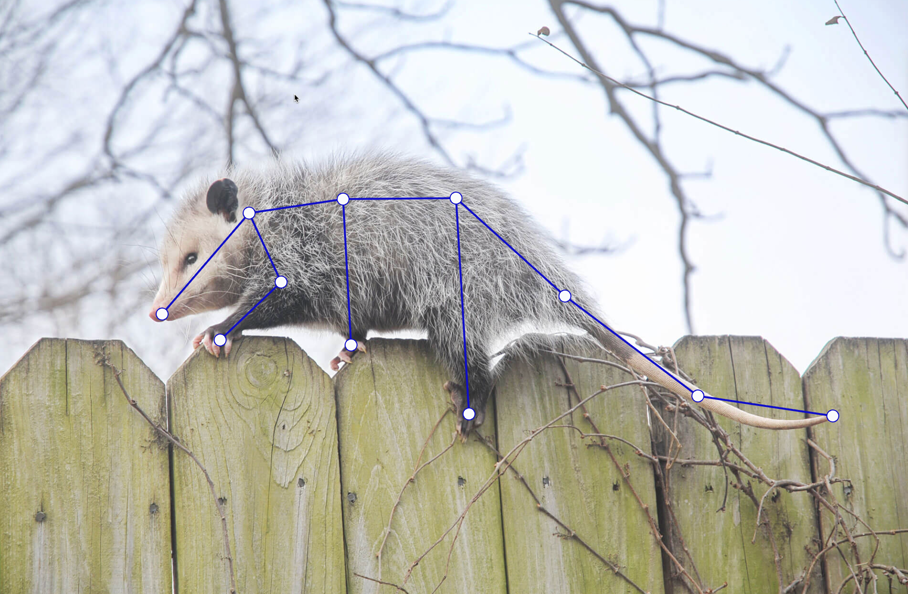

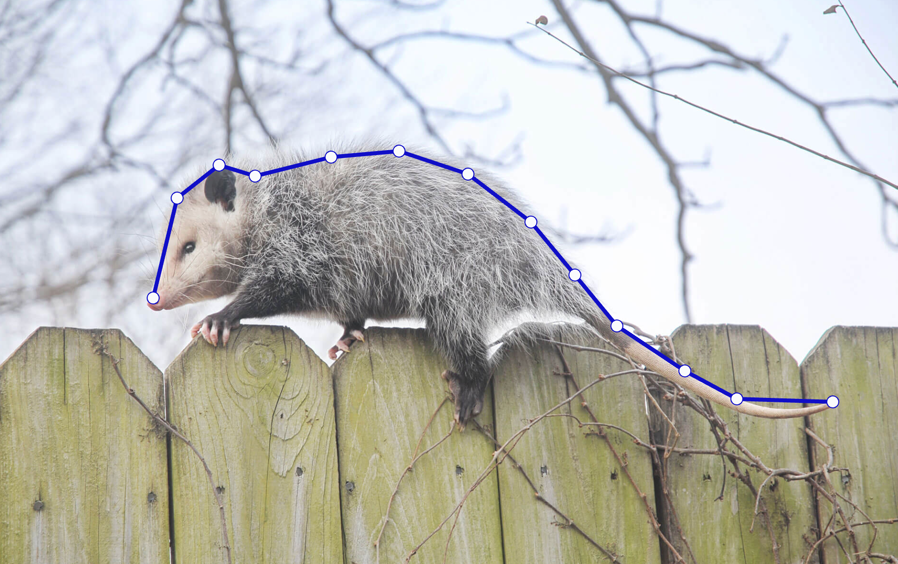

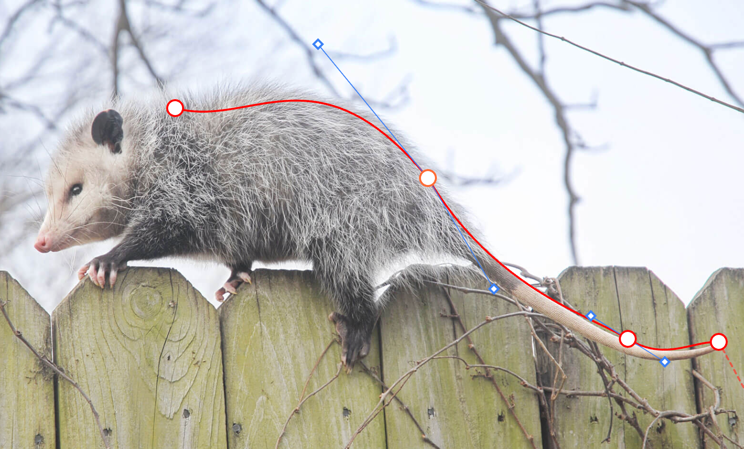

tag is used to create labeled vectors. Use to apply labels to
vectors in semantic segmentation tasks.
Use with the following data types: image.
Parameters
Param | Type | Default | Description |
---|---|---|---|
name | string |
Name of tag | |
toName | string |
Name of image to label | |
[choice] | single | multiple |
single |
Configure whether you can select one or multiple labels |
[maxUsages] | number |
Maximum number of times a label can be used per task | |
[showInline] | boolean |
true |
Show labels in the same visual line |
[opacity] | number |
0.2 |
Opacity of vector |
[fillColor] | string |
Vector fill color in hexadecimal | |
[strokeColor] | string |
Stroke color in hexadecimal | |
[strokeWidth] | number |
1 |
Width of stroke |
[pointSize] | small | medium | large |
medium |
Size of vector handle points |
[pointStyle] | rectangle | circle |
rectangle |
Style of points |
[snap] | pixel | none |
none |
Snap vector to image pixels |
Result parameters
Kind: global typedef
Returns: VectorRegionResult
- The serialized vector region data in Label Studio format
Properties
Name | Type | Description |
---|---|---|
original_width | number |
width of the original image (px) |
original_height | number |
height of the original image (px) |
image_rotation | number |
rotation degree of the image (deg) |
value | Object |
|
value.vertices | Array.<Object> |
array of point objects with coordinates, bezier curve information, and point relationships |
value.closed | boolean |
whether the vector is closed (polygon) or open (polyline) |
value.vectorlabels | Array.<string> |
array of label names assigned to this vector |
Example JSON
{
"original_width": 1920,
"original_height": 1280,
"image_rotation": 0,
"value": {
"vertices": [
{ "id": "point-1", "x": 25.0, "y": 30.0, "prevPointId": null, "isBezier": false },
{ "id": "point-2", "x": 75.0, "y": 70.0, "prevPointId": "point-1", "isBezier": true,
"controlPoint1": {"x": 50.0, "y": 40.0}, "controlPoint2": {"x": 60.0, "y": 60.0} }
],
"closed": false,
"vectorlabels": ["Road"]
}
}
Example
Basic labeling configuration for vector semantic segmentation of images
<View>
<Image name="image" value="$image" />
<VectorLabels name="labels" toName="image">
<label value="Road" /> <label value="Boundary" />
</VectorLabels>
</View>
