Label distribution dashboard
The label distribution dashboard provides a visual representation of the label distribution in a project over time.
Access by user role
| User role | Access restrictions |
|---|---|
| Owner and Admin | Can view the Label Distribution dashboard and filter for all projects. |
| Manager | Can view the Label Distribution dashboard, but can only filter for and view projects in which they are a member. |
| Reviewer and Annotator | Cannot access the Label Distribution dashboard. When they open Analytics, they are redirected to the Member Performance dashboard, where they can only see their own annotation and review history. |
Supported control tags
The label distribution dashboard supports control tags that have nested child tags.
For example, tags such as <Choices>, <Labels>, <RectangleLabels> are supported.
But tags such as <TextArea>, <Rating>, and <Number> are not supported.
note
Taxonomy tags with nested Choice tags are supported, but not taxonomies defined with an external source.
Label summaries and charts

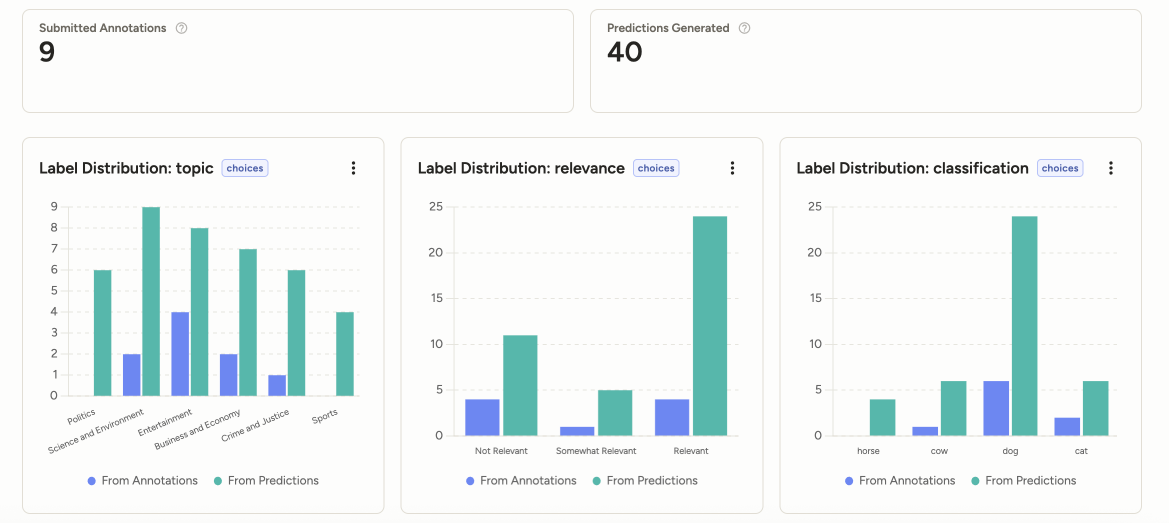

At the top of the Label distribution dashboard, summary cards show how many annotations and predictions are in the project.

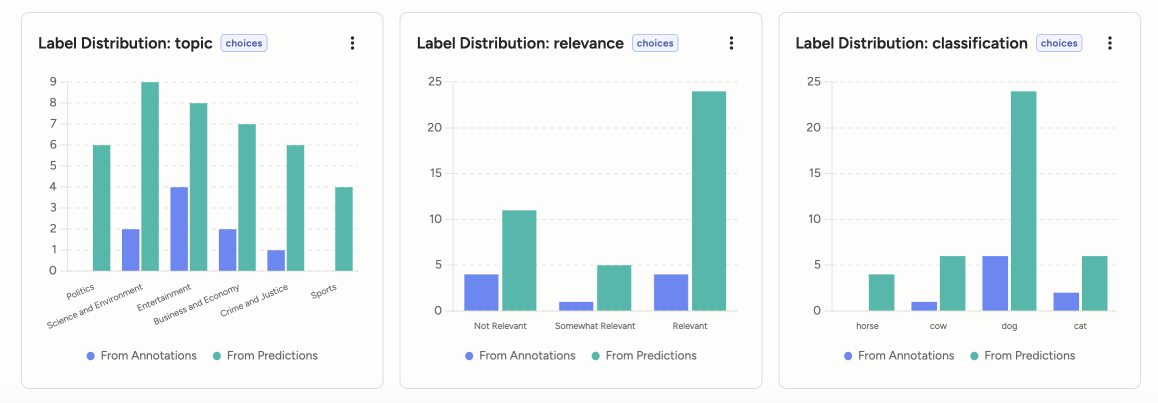

The charts show distribution of labels from annotations and from predictions.

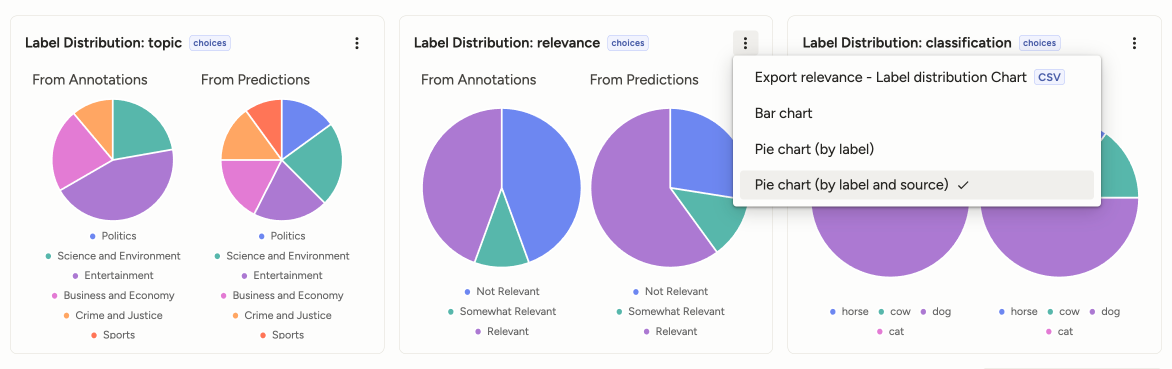

You can click the overflow menu next to each chart to view it as a pie chart or to export the data as a CSV file.

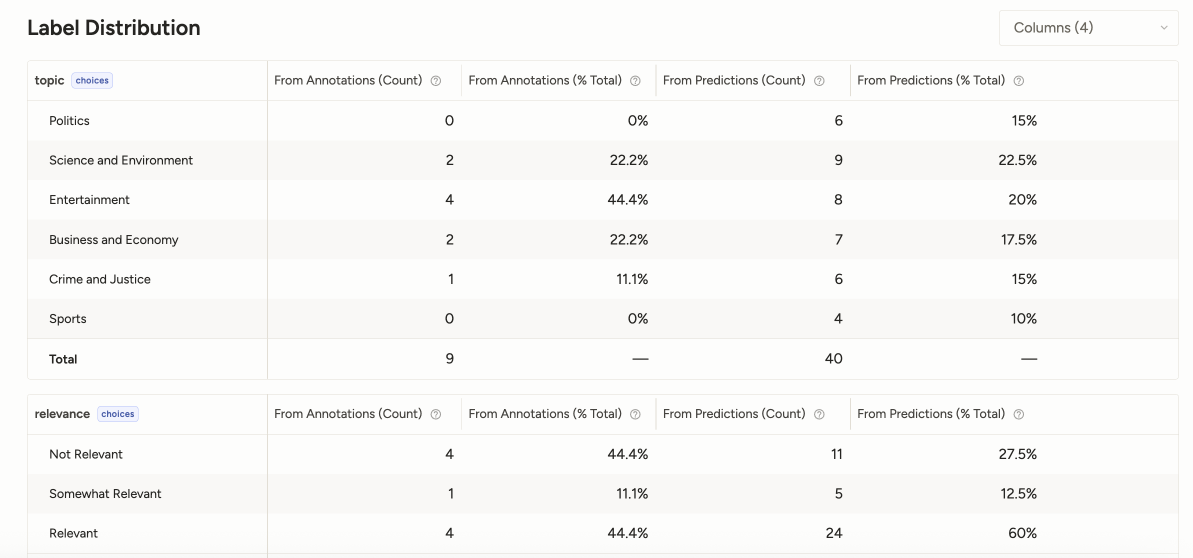

Label distribution tables
The label distribution table shows a detailed distribution of labels from annotations and from predictions, shown as total count and as a percentage relative to the total number of annotations/predictions.
